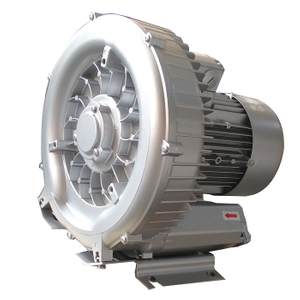

830H27
REXCHIP
8414809090
We are the manufacturer for side channel blowers(also called regenerative blower, ring blower), located in Wenling, Zhejiang, China, which is near Ningbo and Shanghai port. Our company is specialized in producing the high pressure and efficiency side channel blowers.
The air flow capabilities of our blowers range from 60 to 2480 m3/h, the max vacuum pressure could reach -500mbar, and the max compress pressure could reach 600mbar, the power ranges from 0.12KW to 29KW. We only produce side channel blowers.
Specification
Model | Stage | Frequency | Power | Voltage | Current | Airflow | Vaccum | Compress | Noise | Weight | |
Hz | KW | V | A | m3/h | mbar | mbar | dB(A) | Kg | |||
830H27 | single | 50 | 7.50 | 345-415Δ | 600-720Y | 16.7Δ/9.6Y | 700 | -270 | 260 | 70 | 69 |
60 | 8.60 | 380-480Δ | 660-720Y | 17.3Δ/10.0Y | 840 | -270 | 260 | 74 |
The advantages of Rexchip blowers:
1. 100% oil free, Insulation class is F, Protection class is IP55.
2. Dual frequency 50HZ and 60HZ are available
3. Made of die cast aluminum ADC12.
4. Dual usage: compressor and vacuum (suction and blow).
5. Virtually maintenance free, with sealed long life bearings.
6. Smart design and low noise
7. ATEX explosion proof motor is available for all the blowers.
8. IE2 and IE3 motor are available for some blowers.
9. Good quality and competitive prices.
10. Quick delivery date.
Our blowers are widely used in the following applications
1. Aquaculture (fish and prawn pong aeration)
2. Waste water treatment, sewage treatment system.
3. Pneumatic conveying systems.
4.Pharmaceutical machinery
5.Garment machinery
6.Wood working machinery
7.Plastic machinery
8.Printing machinery
9.Textile machinery
10.Packaging machinery
11.Clay bricks for manufacturing
12.Paper processing.
13. Industrial cleaning machinery
14. Air knives
15. Dental suction equipment
Application scenarios:
Our certification: (CE, ISO & CCC)
Our exhibition:

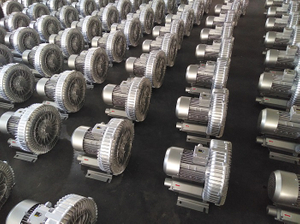

Our workshop
The instruction for Rexchip blowers:
The team of Rexchip has focused on this kind of blower for more than 15 years. We only produce side channel blowers, it's also called ring blower, regenerative blower, air blower, vacuum pump etc.. We also supply belt drive blowers and all the parts for this kind of blower. The range of the power for our blowers is from 0.12kw to 30kw.
Each production procedure is operated in our own workshop, tooling making, die casting, stamping, high precision machining, assembling and automatic spraying, so we could control the quality, cost and delivery date better.
We are the manufacturer for side channel blowers(also called regenerative blower, ring blower), located in Wenling, Zhejiang, China, which is near Ningbo and Shanghai port. Our company is specialized in producing the high pressure and efficiency side channel blowers.
The air flow capabilities of our blowers range from 60 to 2480 m3/h, the max vacuum pressure could reach -500mbar, and the max compress pressure could reach 600mbar, the power ranges from 0.12KW to 29KW. We only produce side channel blowers.
