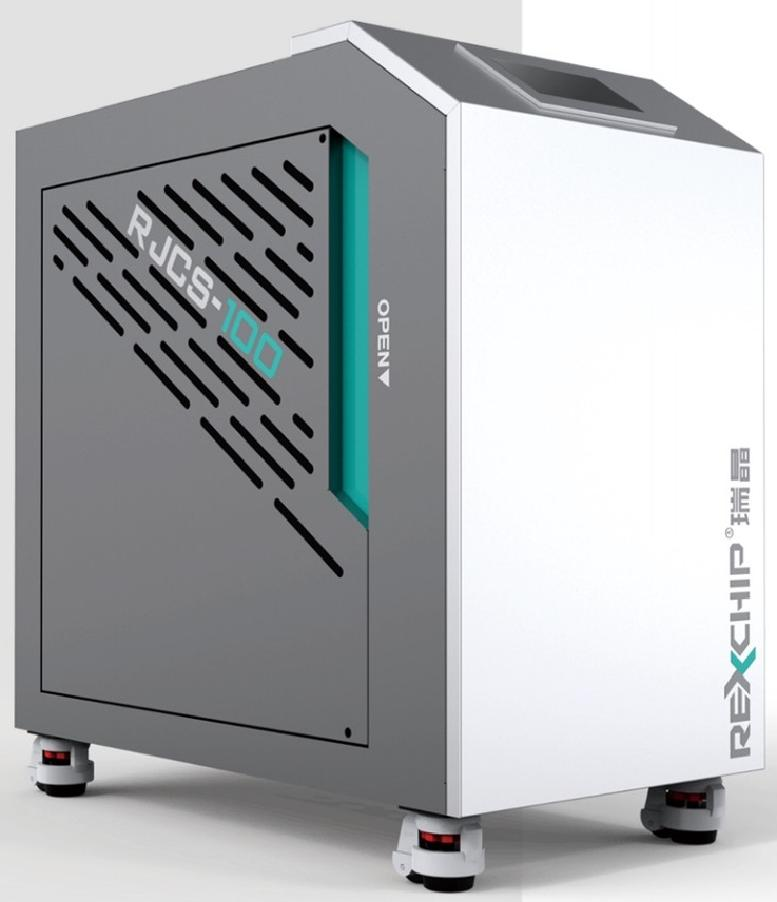

New product introduction - High speed PM motor blower
1)Technical parameters:
Power:30kW 40HP
Rated Voltage：380V
Maximum Current：62A，
Max Rotational Speed is 21500RPM

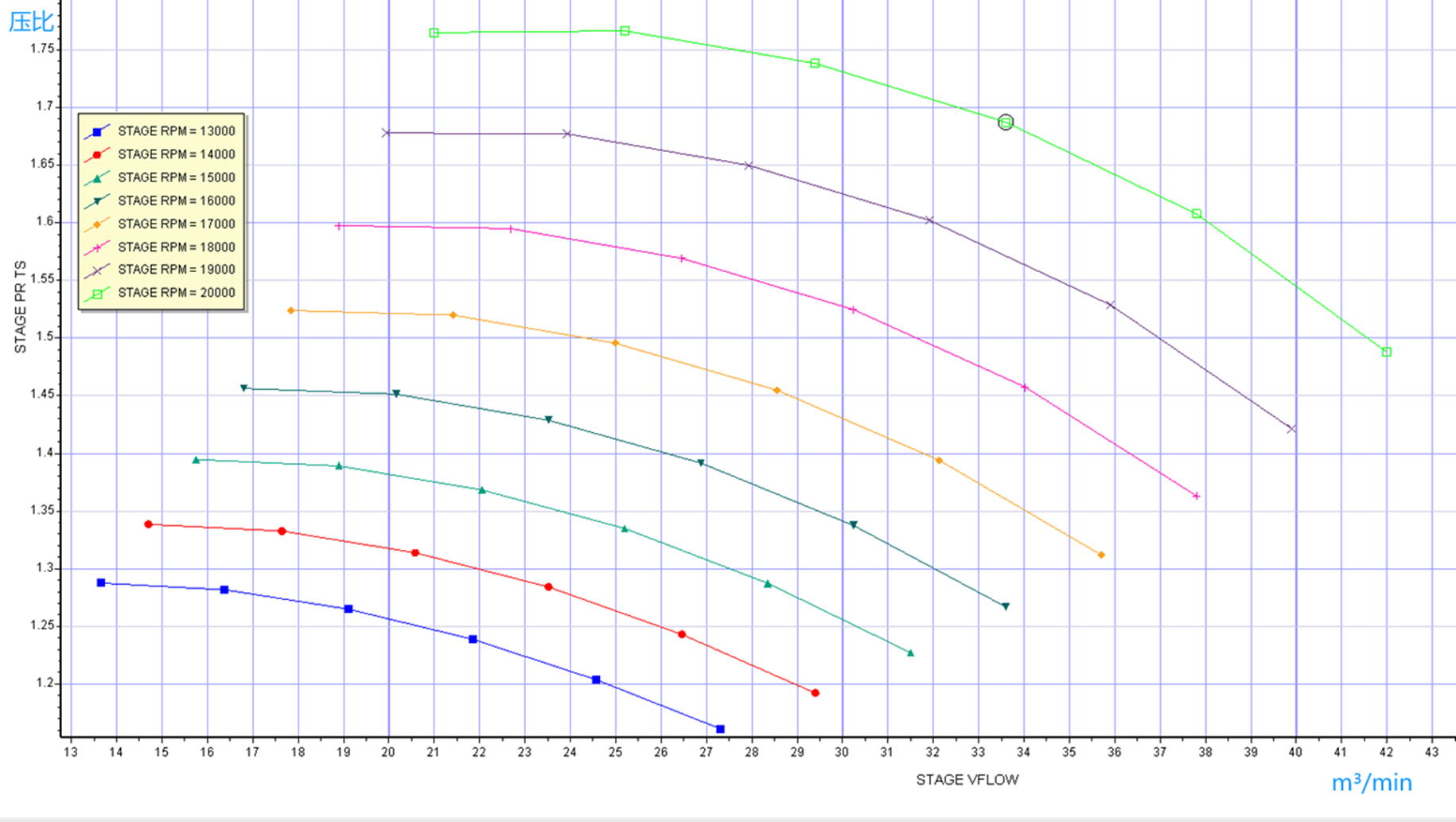

Air flow reaches 4560m3/h at 150mbar.
Air flow reaches 3720m3/h at 200mbar.
Air flow reaches 3120m3/h at 250mbar.
Air flow reaches 2400m3/h at 300mbar.
Air flow reaches 2220m3/h at 350mbar.
Insulation Class：H
Protection Class：IP54
Outlet Size：160
2)Advantage:
High efficiency;
Energy saving ;
Low noise;
Large air volume;
Corrosion-resistant;
Remote Control

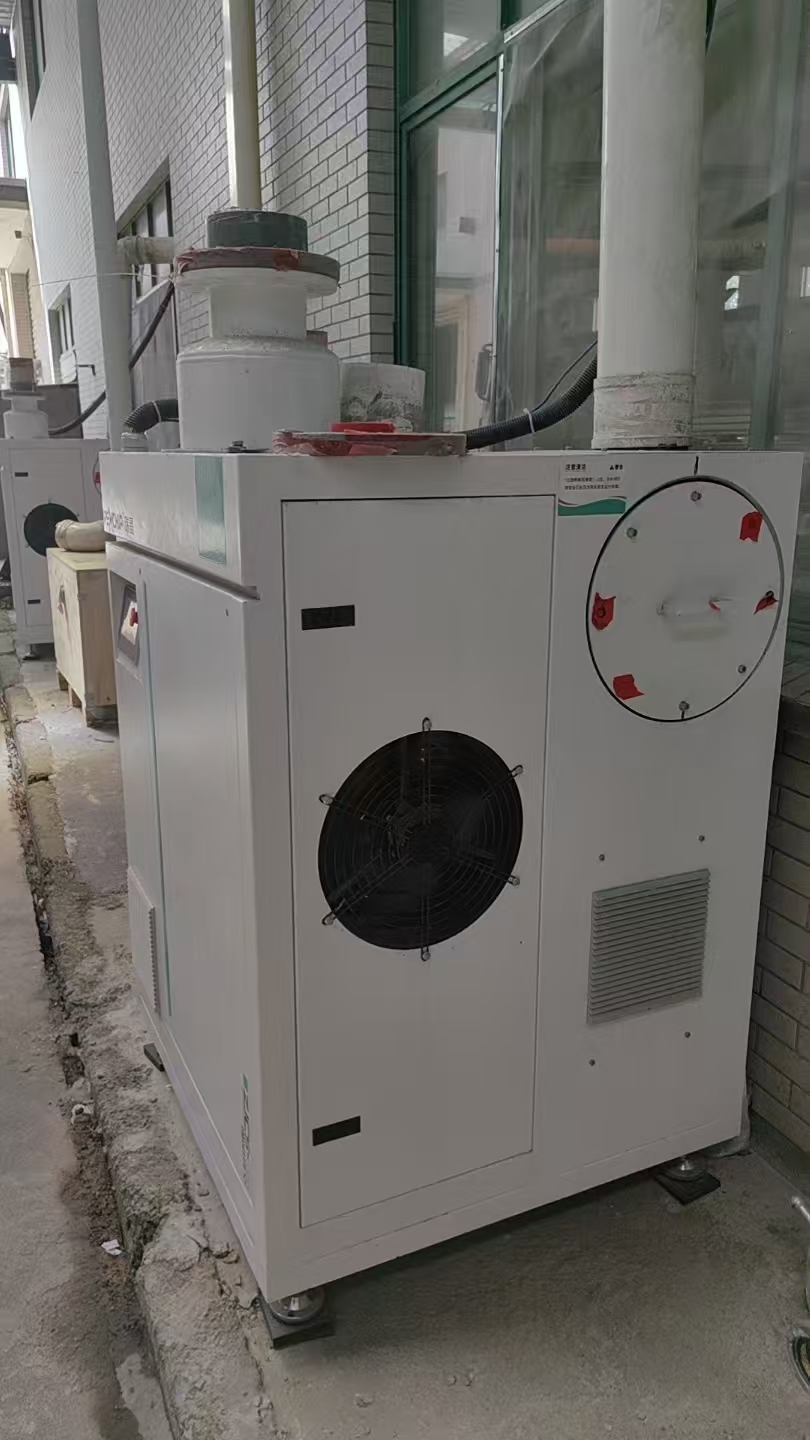

3)Case show:
Two fish ponds with a water depth of 1.5 meters, totaling 160 acres, can be operated by a single 15kW High speed blower, successfully replaced four 7.5kW Roots blowers
If you are interested, please contact me.
venda@rexchipblower.com
Thanks
